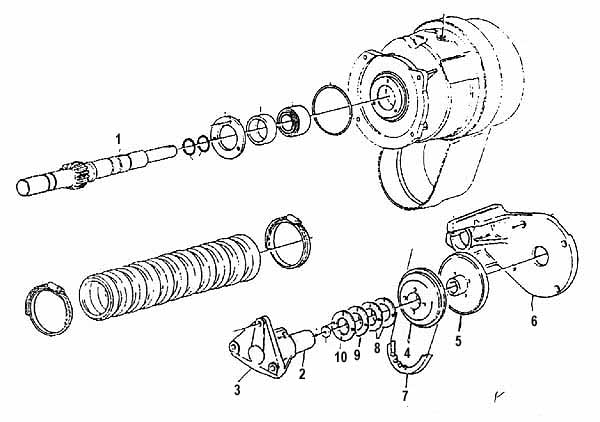

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. K-2

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7
8
9
10

K02001
K02002
K02003
K02004
K02005
K02006
K02007
K02008
K02009
K02010

Shaft
Shaft
Support
Pulley
Pulley
Flange
Belt
Plate
Plate
Plate

B84579

B60770


B60769
B86339
