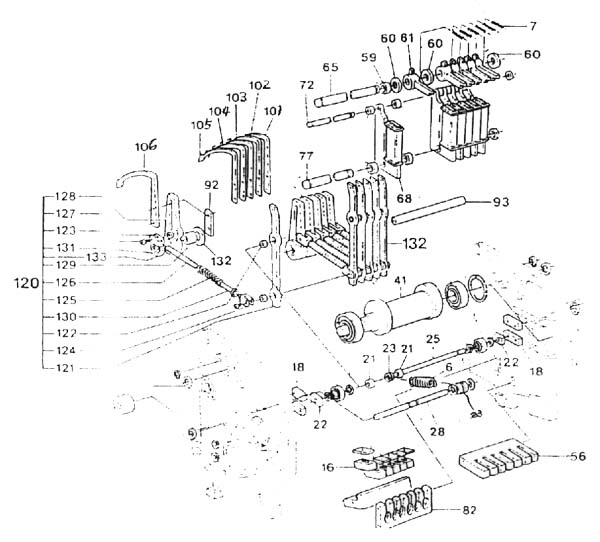

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. I-1

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

6
7
16
18
21
22
23
25
28
41
56
59
60
61
65
68
72

I01006
I01007
I01016
I01018
I01021
I01022
I01023
I01025
I01028
I01041
I01056
I01059
I01060
I01061
I01065
I01068
I01072

Spring
Spring
Stop
Guidepiece
Bushing
Guide
Bushing
Shaft
Shaft
Mainshaft
Guide
Bushing
Washer
Armature
Shaft
Magnet
Shaft

B86724
B71166
B81037
B86701
B87451
B86702
B86698
B87539
B86723
B87029
B86992
B82274
B77168
B82252
B82254
B73208
B82256

77
82
92
93
101
106
120
121
122
123
124
125
126
127
128
129
130

I01077
I01082
I01092
I01093
I01101
I01106
I01120
I01121
I01122
I01123
I01124
I01125
I01126
I01127
I01128
I01129
I01130

Shaft
Support
Block
Shaft
Hook 1
Hook 6
Hook Holder
Lever
Bushing
Screw
Link
Spring
Rod
Link
Hook Holder
Needle sleere
Spring sleeve

B82255
B83765
B86722
B83767
BE87653
BE87658
BE81624
B86613
B87536
B72057
B86993
B86867
B86991
B86615
B87313
B82238
B86866
