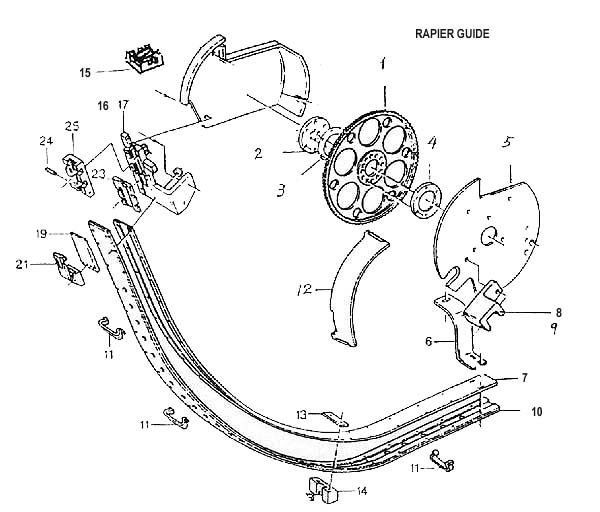

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. F-2

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7
8
9
10
11

F01001
F01002
F01003
F01004
F01005
F01006
F01007
F01008
F01009
F01010
F01011

Drive wheel
Flange
Thickness ring
Flange
Disc
Support
Rapier quide
Adiusting block
Adlusting block
Cover
Clamp

B88251
B82532
B82531
B82533
B88561
B88737
BE81549
B88513


B87391

13
14
15
16
17
19
21
23
24
25

F01013
F01014
F01015
F01016
F01017
F01019
F01021
F01023
F01024
F01025

Plate
Support
Support
Support
Suppoer
Plate
Lock
Guide
Pin
Support

B82042
B88528
B87670
B88521
B88520
B87393
B76447
B85174

B87671

ALL PARTS DETAILS

A. GRIPPER:
A-1(LHS Gripper)   A-2(RHS Gripper)   A-3(LHS Gripper)   A-4(RHS Gripper)
B. LENO:
B-1(Leno)   B-2(GTM Leno)   B-3(Leno)   B-4(Leno)   B-5(Leno)
C. BOBBIN HOLDER:
C-1(Bobbin holder)   C-2(Guider)   C-3(Guider)
D. SELVEDGE AND HARNESS ROD:
D-1(Selvedge Motion)   D-2(Selvedge Motion)

D-3(Dobhy Lever)   D-4(Harness Guide)
E. CUTTER:
E-1(Weft Cutter)   E-2(Weft Cutter)   E-3(Waste Cutter)
F. GRIPPER GUIDE:
F-1(Ropier Guide)   F-2(Sley Beam)
G. HOUSING:
G-1(Housing, Take-up)   G-2(Housing, Take-up)   G-3(Housing, Leno)

G-4(Housing, Gripper)   G-5(Housing, Sley)
H. SAND ROLLER:
H-1(Sand Roller)
I. WEFT SELECTOR:
I-1(Weft Selector)   I-2(Weft Selector)
J. SUCTION DEVICE:
J-1(Suction Device)
K. CLUTCH:
K-1(Main Clutch)   K-2(Pulley)
L. OTHERS:
L-1(Others)
