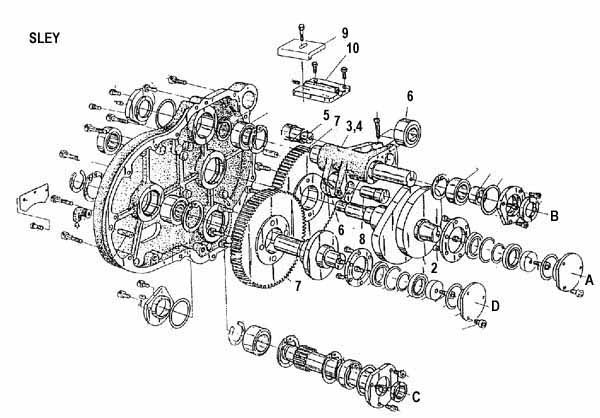

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. G-5

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7
8
9
10

G05001
G05002
G05003
G05004
G05005
G05006
G05007
G05008
G05009
G05010

Cam
Cam
Shaft
Shaft
Shaft
Bearing
Gear
Shaft
Clamp
Civer

B84418
B84419
B84576
B84575
B82659
B82687
B81124
B82658
B85376
B85372
