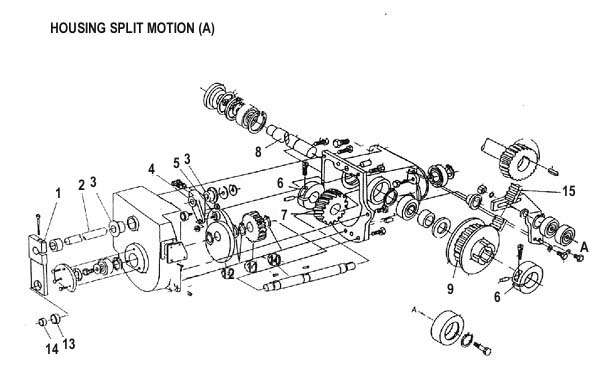

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. G-3

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7
8

G03001
G03002
G03003
G03004
G03005
G03006
G03007
G03008

Drive Lever
Shaft
Bushing
Cam follower
Bearing
Clamping ring
Gear
Shaft

BE81792
B87562

B87700
B87567
B87431
B83177
B83169

9
10
11
12
13
14
15

G03009
G03010
G03011
G03012
G03013
G03014
G03015

Pully
Shaft
Gear
Cam
Bushing
Bushing
Belt

BE81562
B87561
B87560
B88248
B74458
B74750
B88613

ALL PARTS DETAILS

A. GRIPPER:
A-1(LHS Gripper)   A-2(RHS Gripper)   A-3(LHS Gripper)   A-4(RHS Gripper)
B. LENO:
B-1(Leno)   B-2(GTM Leno)   B-3(Leno)   B-4(Leno)   B-5(Leno)
C. BOBBIN HOLDER:
C-1(Bobbin holder)   C-2(Guider)   C-3(Guider)
D. SELVEDGE AND HARNESS ROD:
D-1(Selvedge Motion)   D-2(Selvedge Motion)

D-3(Dobhy Lever)   D-4(Harness Guide)
E. CUTTER:
E-1(Weft Cutter)   E-2(Weft Cutter)   E-3(Waste Cutter)
F. GRIPPER GUIDE:
F-1(Ropier Guide)   F-2(Sley Beam)
G. HOUSING:
G-1(Housing, Take-up)   G-2(Housing, Take-up)   G-3(Housing, Leno)

G-4(Housing, Gripper)   G-5(Housing, Sley)
H. SAND ROLLER:
H-1(Sand Roller)
I. WEFT SELECTOR:
I-1(Weft Selector)   I-2(Weft Selector)
J. SUCTION DEVICE:
J-1(Suction Device)
K. CLUTCH:
K-1(Main Clutch)   K-2(Pulley)
L. OTHERS:
L-1(Others)
