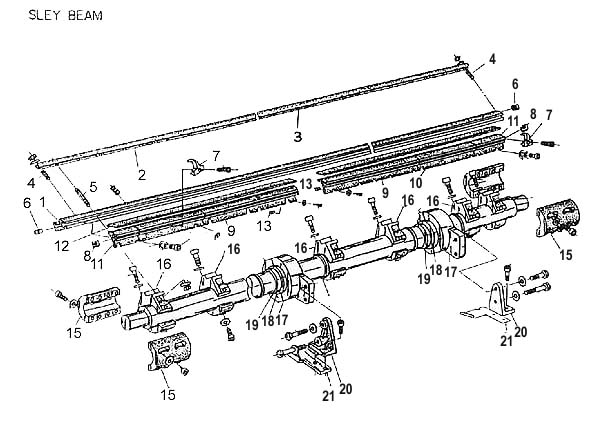

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. F-2

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7
8
9
10

F02001
F02002
F02003
F02004
F02005
F02006
F02007
F02008
F02009
F02010

Reed holder
Key
Key
Screw
Screw
Nut
Guide
Nut
Shuttle race
Shuttle race

B88081
B88831
B89832
B97459
B97461
B82971
B87908
B84848
B88252
B84840

11
12
13
15
16
17
18
19
20
21

F02011
F02012
F02013
F02015
F02016
F02017
F02018
F02019
F02020
F02021

Shuttle race
Covering

Sleeve
Sword

Bushing
Bearing Bushing
Support
Oil plate

B84841
B88082

B89706
B102765
BE81356


B86653
B88763
