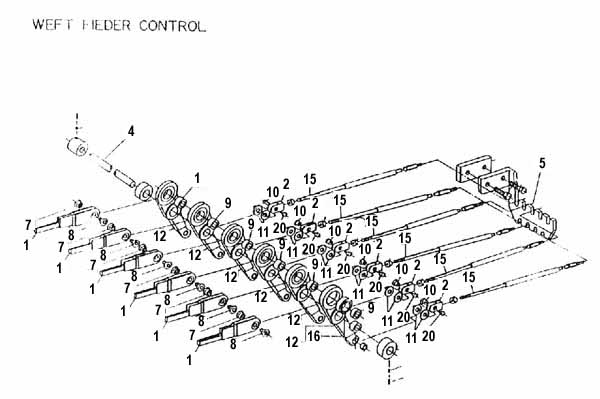

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. I-2

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
4
5
7
8
9
10
11
12
15
16
20

I02001
I02002
I02004
I02005
I02007
I02008
I02009
I02010
I02011
I02012
I02015
I02016
I02020

Rod
Link
Shaft
Shaft
Nut
Screw
Bushing
Nut
Ring
Lever
Harness strap
Bushing
Screw

B82802
B82798
B84665
B85070
B74748
B74749
B74750
B83934
B82799
B80823
BE80914
B74458
4X8
