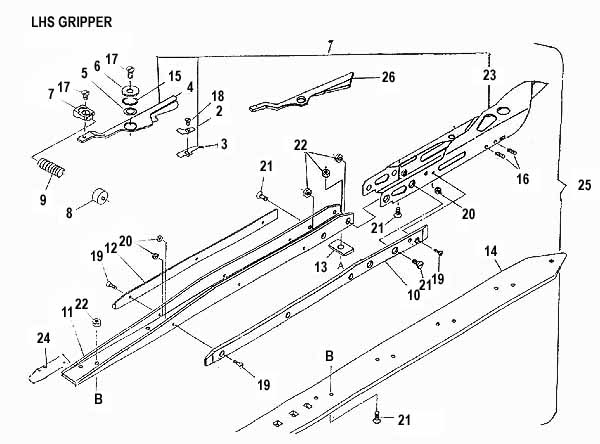

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. A-1

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7
8
9

10
11
12
13

A01001
A01002
A01003
A01004
A01005
A01116
A01007
A01008
A01009
A01009-1
A01010
A01011
A01012
A01013

Gripper
Clamp
Clamp
Thread cIip
Bushing
Washer
Plate
Holder
Spring
Spring
Guide
Support
Guide (B88420)
Spacer

BE81939
B85524
B87107
BE81496
B87053
B87054
--
B81614
B80738
B80788
B84471
B82570
B88420
B80867

14
15
16
17
18
19
20
21
22
23
24
25
26

A01014
A01015
A01016
A01017
A01018
A01019
A01020
A01021
A01022
A01023
A0l024
A01025
A01026

Rapier tape
Bushing
Screw
Screw
Screw
Screw
Nut
Screw
Nut
Gripper
Guide
Gripper assembly
Thread clip

B88364
--
--
3x4
2x6
2x7
--
3x7
--
BE81936
B83978
BE53148
--

ALL PARTS DETAILS

A. GRIPPER:
A-1(LHS Gripper)   A-2(RHS Gripper)   A-3(LHS Gripper)   A-4(RHS Gripper)
B. LENO:
B-1(Leno)   B-2(GTM Leno)   B-3(Leno)   B-4(Leno)   B-5(Leno)
C. BOBBIN HOLDER:
C-1(Bobbin holder)   C-2(Guider)   C-3(Guider)
D. SELVEDGE AND HARNESS ROD:
D-1(Selvedge Motion)   D-2(Selvedge Motion)

D-3(Dobhy Lever)   D-4(Harness Guide)
E. CUTTER:
E-1(Weft Cutter)   E-2(Weft Cutter)   E-3(Waste Cutter)
F. GRIPPER GUIDE:
F-1(Ropier Guide)   F-2(Sley Beam)
G. HOUSING:
G-1(Housing, Take-up)   G-2(Housing, Take-up)   G-3(Housing, Leno)

G-4(Housing, Gripper)   G-5(Housing, Sley)
H. SAND ROLLER:
H-1(Sand Roller)
I. WEFT SELECTOR:
I-1(Weft Selector)   I-2(Weft Selector)
J. SUCTION DEVICE:
J-1(Suction Device)
K. CLUTCH:
K-1(Main Clutch)   K-2(Pulley)
L. OTHERS:
L-1(Others)
