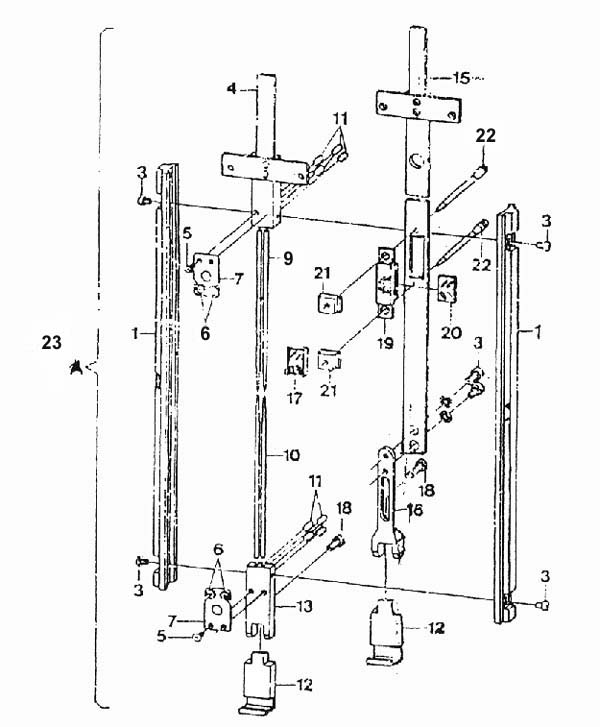

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. B-2

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
3
4
5
6
7
9
10
11
12

B02001
B02003
B02004
B02005
B02006
B02007
B02009
B02010
B02011
B02012

Guide
Screw
Front bar
Screw
Ceramic eye
Thread Guide
Needle
Needle
Screw
Clamp


4X6

3x6





B87570

13
15
16
17
18
19
20
21
22
23

B02013
B02015
B02016
B02017
B02018
B02019
B02020
B02021
B02022
B02023

Clamp
Guide
Clamp
Magnet guide
Screw
Guide
Guide
Sliding piece
Strap
Leno

B87625

ALL PARTS DETAILS

A. GRIPPER:
A-1(LHS Gripper)   A-2(RHS Gripper)   A-3(LHS Gripper)   A-4(RHS Gripper)
B. LENO:
B-1(Leno)   B-2(GTM Leno)   B-3(Leno)   B-4(Leno)   B-5(Leno)
C. BOBBIN HOLDER:
C-1(Bobbin holder)   C-2(Guider)   C-3(Guider)
D. SELVEDGE AND HARNESS ROD:
D-1(Selvedge Motion)   D-2(Selvedge Motion)

D-3(Dobhy Lever)   D-4(Harness Guide)
E. CUTTER:
E-1(Weft Cutter)   E-2(Weft Cutter)   E-3(Waste Cutter)
F. GRIPPER GUIDE:
F-1(Ropier Guide)   F-2(Sley Beam)
G. HOUSING:
G-1(Housing, Take-up)   G-2(Housing, Take-up)   G-3(Housing, Leno)

G-4(Housing, Gripper)   G-5(Housing, Sley)
H. SAND ROLLER:
H-1(Sand Roller)
I. WEFT SELECTOR:
I-1(Weft Selector)   I-2(Weft Selector)
J. SUCTION DEVICE:
J-1(Suction Device)
K. CLUTCH:
K-1(Main Clutch)   K-2(Pulley)
L. OTHERS:
L-1(Others)
