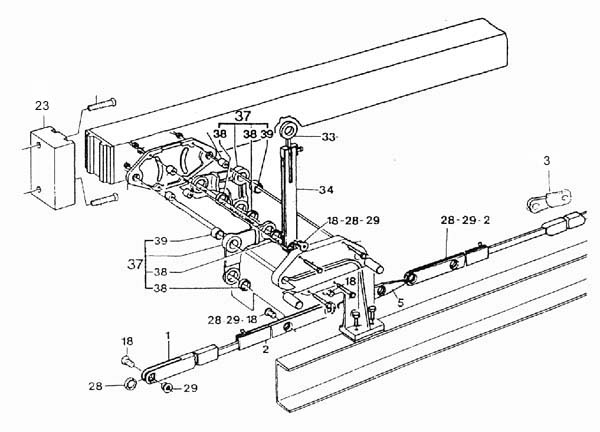

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. D-2

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
18
23

D02001
D02002
D02003
D02004
D02005
D02018
D02023

Rod
Rod
Rod
Rod
Plate
Screw
Guide

B87468
B87298
B87299
B87467
B87301
B74749
B81324

28
29
33
34
37
38
39

D02028
D02009
D02033
D02034
D02037
D02038
D02039

Bushing
Nut
Rod
Rod
Lever
Bushing
Bushing

B74750
B74748
B84230
B83073
BE81227
B74458
B80416
