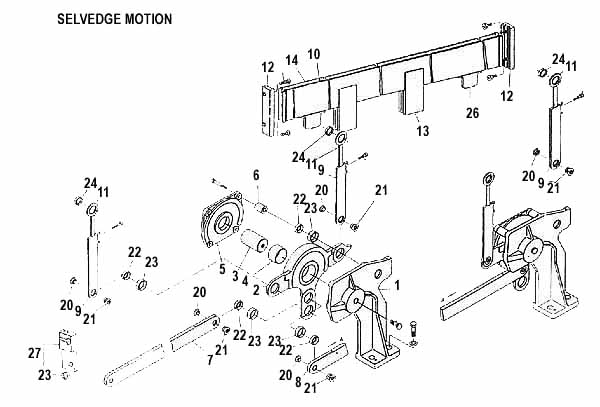

d-1picanol parts

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7
8
9
10
11

D01001
D01002
D01003
D01004
D01005
D01006
D01007
D01008
D01009
D01010
D01011

Support
Lever
Sheft
Bushing
Cover
Bushing
Rod
Rod
Rod
Drive
Rod

BE81810
BE81809
B88256
B88254
B88260
B88255
B88268
B88269
B83073
B88259
B84230

12
13
14
20
21
22
23
24
26
27

D01012
D01013
D01014
D01020
D01021
D01022
D01023
D01024
D01026
D01027

Guide
Guide
Drive
Nut
Screw
Bushing
Bushing
Busing

Drive lever

B81324

B88258
B74748
B74749
B74750
B74458


BE81792
