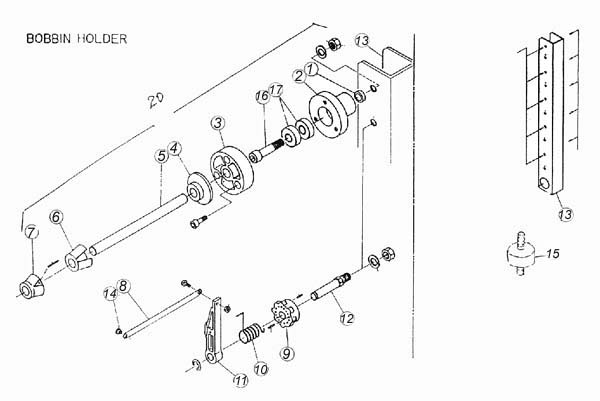

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. C-1

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7
8
9

C01001
C01002
C01003
C01004
C01005
C01006
C01007
C01008
C01009

Collar
Bearing collar
Collar
Clamp
Shaft
Clamp
Clamp
Spring
Adjust roll

10
11
12
13
14
15
16
17
20

C01010
C01011
C01012
C01013
C01014
C01015
C01016
C01017
C01018

Spring
Brecket
Shaft
Support
Eye
Rubber
Screw
Bearing

ALL PARTS DETAILS

A. GRIPPER:
A-1(LHS Gripper)   A-2(RHS Gripper)   A-3(LHS Gripper)   A-4(RHS Gripper)
B. LENO:
B-1(Leno)   B-2(GTM Leno)   B-3(Leno)   B-4(Leno)   B-5(Leno)
C. BOBBIN HOLDER:
C-1(Bobbin holder)   C-2(Guider)   C-3(Guider)
D. SELVEDGE AND HARNESS ROD:
D-1(Selvedge Motion)   D-2(Selvedge Motion)

D-3(Dobhy Lever)   D-4(Harness Guide)
E. CUTTER:
E-1(Weft Cutter)   E-2(Weft Cutter)   E-3(Waste Cutter)
F. GRIPPER GUIDE:
F-1(Ropier Guide)   F-2(Sley Beam)
G. HOUSING:
G-1(Housing, Take-up)   G-2(Housing, Take-up)   G-3(Housing, Leno)

G-4(Housing, Gripper)   G-5(Housing, Sley)
H. SAND ROLLER:
H-1(Sand Roller)
I. WEFT SELECTOR:
I-1(Weft Selector)   I-2(Weft Selector)
J. SUCTION DEVICE:
J-1(Suction Device)
K. CLUTCH:
K-1(Main Clutch)   K-2(Pulley)
L. OTHERS:
L-1(Others)
