Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. H-1

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
7
8
9
10
11
12
13

H01001
H01002
H01003
H01004
H01005
H01007
H01008
H01009
H01010
H01011
H01012
H01013

Sleeve
Key
Shaft

Roll
Roll
Handle
Shaft
Spring
Holder
Lever
Lever

B85839
8x7x30
B82711

BE81009
BE8100
B82892
B82888
B90405
B85400
B85746
BE81125

14
15
16
17
18
19
20
21
22
23
24

H01014
H01015
H01016
H01017
H01018
H01019
H01020
H01021
H01022
H01023
H01024

Bushing
Support
Bushing
Support
Bushing
Bushing
Support
Support

Sandroll
Gear

B85747
BE80966
B9673
BE81124
B85747
B9677
BE81123
B85389

BE81126

ALL PARTS DETAILS

A. GRIPPER:
A-1(LHS Gripper)   A-2(RHS Gripper)   A-3(LHS Gripper)   A-4(RHS Gripper)
B. LENO:
B-1(Leno)   B-2(GTM Leno)   B-3(Leno)   B-4(Leno)   B-5(Leno)
C. BOBBIN HOLDER:
C-1(Bobbin holder)   C-2(Guider)   C-3(Guider)
D. SELVEDGE AND HARNESS ROD:
D-1(Selvedge Motion)   D-2(Selvedge Motion)

D-3(Dobhy Lever)   D-4(Harness Guide)
E. CUTTER:
E-1(Weft Cutter)   E-2(Weft Cutter)   E-3(Waste Cutter)
F. GRIPPER GUIDE:
F-1(Ropier Guide)   F-2(Sley Beam)
G. HOUSING:
G-1(Housing, Take-up)   G-2(Housing, Take-up)   G-3(Housing, Leno)

G-4(Housing, Gripper)   G-5(Housing, Sley)

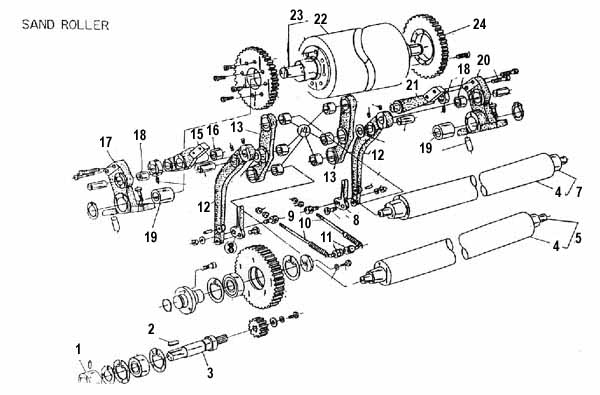

H. SAND ROLLER:
H-1(Sand Roller)
I. WEFT SELECTOR:
I-1(Weft Selector)   I-2(Weft Selector)
J. SUCTION DEVICE:
J-1(Suction Device)
K. CLUTCH:
K-1(Main Clutch)   K-2(Pulley)
L. OTHERS:
L-1(Others)
