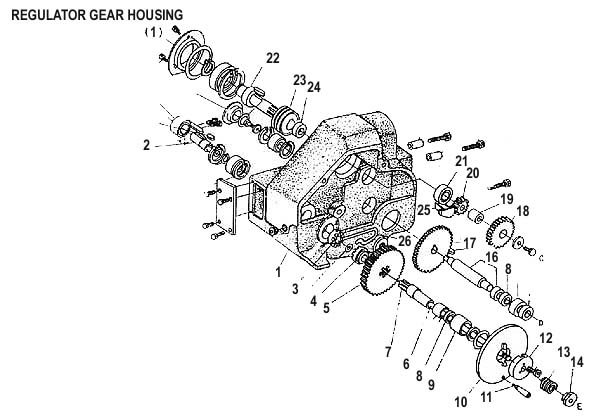

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. G-1

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7
8
9
10
11
12
13

G01001
G01002
G01003
G01004
G01005
G01006
G01007
G01008
G01009
G01010
G01011
G01012
G01013

Housing
Shaft
Couping
Couping
Gear
Shaft
Shaft
Bushing
Bushing
Hand wheel
Handle
Couping
Spring

B88666

B50338
B50339

B82695
BE81592
B6095
BE80952
B82700
B90787
B93413
B51447

14
16
17
18
19
20
21
22
23
24
25
26

G01014
G01016
G01017
G01018
G01019
G01020
G01021
G01022
G01023
G01024
G01025
G01026

Stop collar
Shaft
Gear
Gear
Bushing
Gear
Bearing
Shaft
Worm Gear
Spacer
Oil plate
Spring

B84909
BE80882


B7197

B113

ALL PARTS DETAILS

A. GRIPPER:
A-1(LHS Gripper)   A-2(RHS Gripper)   A-3(LHS Gripper)   A-4(RHS Gripper)
B. LENO:
B-1(Leno)   B-2(GTM Leno)   B-3(Leno)   B-4(Leno)   B-5(Leno)
C. BOBBIN HOLDER:
C-1(Bobbin holder)   C-2(Guider)   C-3(Guider)
D. SELVEDGE AND HARNESS ROD:
D-1(Selvedge Motion)   D-2(Selvedge Motion)

D-3(Dobhy Lever)   D-4(Harness Guide)
E. CUTTER:
E-1(Weft Cutter)   E-2(Weft Cutter)   E-3(Waste Cutter)
F. GRIPPER GUIDE:
F-1(Ropier Guide)   F-2(Sley Beam)
G. HOUSING:
G-1(Housing, Take-up)   G-2(Housing, Take-up)   G-3(Housing, Leno)

G-4(Housing, Gripper)   G-5(Housing, Sley)
H. SAND ROLLER:
H-1(Sand Roller)
I. WEFT SELECTOR:
I-1(Weft Selector)   I-2(Weft Selector)
J. SUCTION DEVICE:
J-1(Suction Device)
K. CLUTCH:
K-1(Main Clutch)   K-2(Pulley)
L. OTHERS:
L-1(Others)
