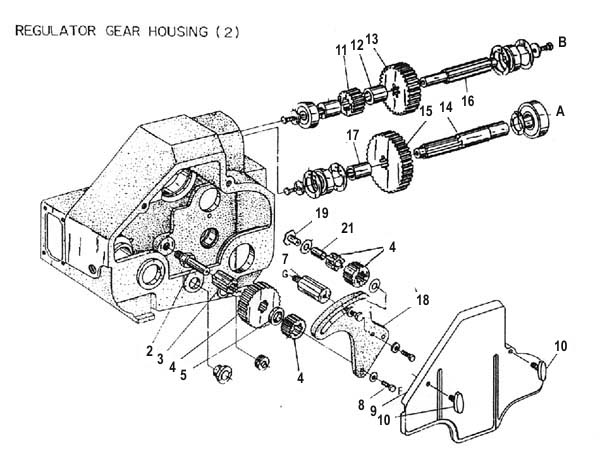

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. G-2

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

2
3
4
5
7
8
9
10
11

G02002
G02003
G02004
G02005
G02007
G02008
G02009
G02010
G02011

Stud
Bushing
Gear
Bushing
Stud
Bolt
Cover
Knob
Gear

B82708

B82717
B82709
B51841
B82193
B85338
B71548
B81428

12
13
14
15
16
17
19
21

G02012
G02013
G02015
G02016
G02017
G02018
G02019
G02021

Bushing
Gear
Shaft
Cear
Shaft
Bushing
Stud
Bushing

B44851

B87180
B81430
B81438
B27162
B85285
B85341
