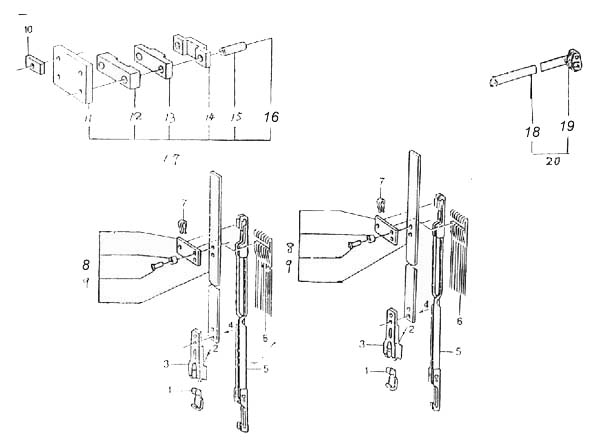

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. B-3

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7
8
9
10

B03001
B03002
B03003
B03004
B03005
B03006
B03007
B03008
B03009
B03010

Hook
Screw
Support
Screw
Heddle
Heddle
Clip
Rail(R)
Rail(L)
Clamp

B87570
5x8
B87569
4x6

B84305
B84052
BE81755
BE81753
B91023

11
12
13
14
15
16
17
18
19
20

B03011
B03012
B03013
B03014
B03015
B03016
B03017
B03018
B03019
B03020

Plate
Guide
Guide
Guide
Bushing
Screw
Guide

B52230
B52227
B52226
B52228
852229
8X50
BE82195
