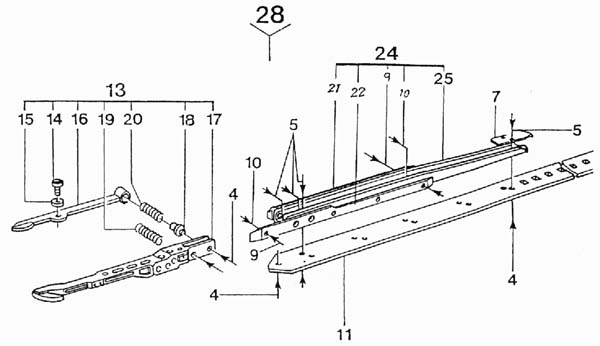

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. A-2

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

4
5
7
9
10
11
13
14
15
16

A02004
A02005
A02007
A02009
A02010
A02011
A02013
A02014
A02015
A02016

Screw
Nut
Guide
Screw
Nut
Rapier tape
RHS Gripper
Screw
Bushing
Thread clip

3x7
3
B83978
2x7
2
B88363
BE81820
B82516
B84702
BE81492

17
18
19
20
21
22
24
25
28

A02017
A02018
A02019
A02020
A02021
A02022
A02024
A02025
A02028

Gripper
Holder
Spring
Spring
Guide
Guide
Gripper back
Support
Gripper Assembly

BE81813
B85751
B85752
B86881


BE81960
B84467
BE53153
