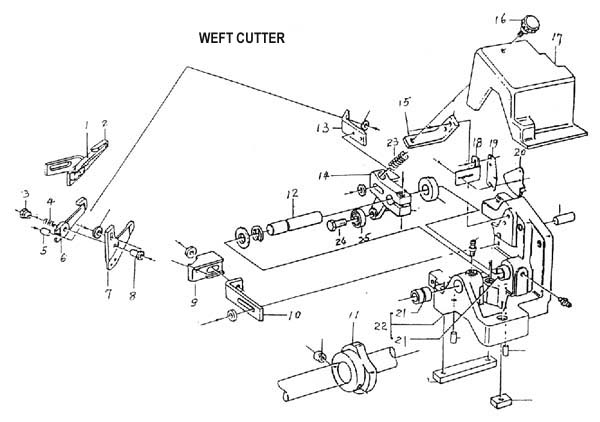

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. E-2

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7
8
9
10
11
12
13

E02001
E02002
E02003
E02004
E02005
E02006
E02007
E02008
E02009
E02010
E02011
E02012
E02013

Spring plate
Hook
Nut
Spring
Bushing
Weft catter
Weft cutter
Bushing
Spacer
Part
Cam
Shaft
Part

B841735
B87963
B83108
B88756
B86136
B52246
B87961
B84854
B88664
B88663
B87827
B88401
B87957

14
15
16
17
18
19
20
21
22
23
24
25

E02014
E02015
E02016
E02017
E02018
E02019
E02020
E02021
E02022
EO2023
E02024
E02025

Lever
Holder
Nut
Cover
Support
Plate
Thread Guide
Bushing
Support
Spring
Screw
Bearing

B52017
B87962
B71548
B88312
B85519
B85520
B84420
B88400
BE81897
B88645
B85367
B7295

ALL PARTS DETAILS

A. GRIPPER:
A-1(LHS Gripper)   A-2(RHS Gripper)   A-3(LHS Gripper)   A-4(RHS Gripper)
B. LENO:
B-1(Leno)   B-2(GTM Leno)   B-3(Leno)   B-4(Leno)   B-5(Leno)
C. BOBBIN HOLDER:
C-1(Bobbin holder)   C-2(Guider)   C-3(Guider)
D. SELVEDGE AND HARNESS ROD:
D-1(Selvedge Motion)   D-2(Selvedge Motion)

D-3(Dobhy Lever)   D-4(Harness Guide)
E. CUTTER:
E-1(Weft Cutter)   E-2(Weft Cutter)   E-3(Waste Cutter)
F. GRIPPER GUIDE:
F-1(Ropier Guide)   F-2(Sley Beam)
G. HOUSING:
G-1(Housing, Take-up)   G-2(Housing, Take-up)   G-3(Housing, Leno)

G-4(Housing, Gripper)   G-5(Housing, Sley)
H. SAND ROLLER:
H-1(Sand Roller)
I. WEFT SELECTOR:
I-1(Weft Selector)   I-2(Weft Selector)
J. SUCTION DEVICE:
J-1(Suction Device)
K. CLUTCH:
K-1(Main Clutch)   K-2(Pulley)
L. OTHERS:
L-1(Others)
