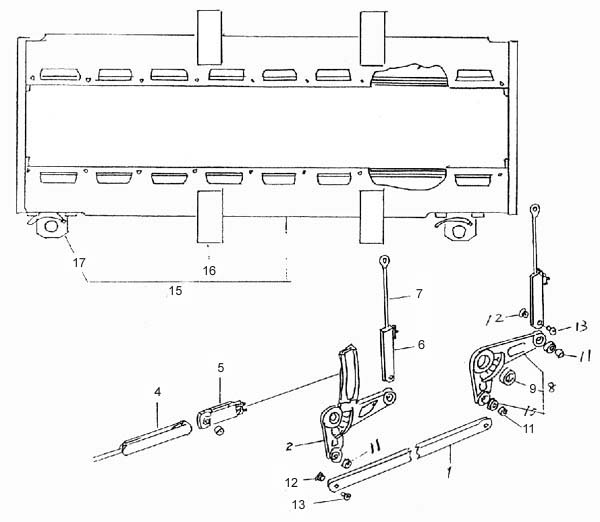

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. D-3

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
4
5
6
7
8
9

D03001
D03002
D03004
D03005
D03006
D03007
D03008
D03009

Rod
Lever
Rod
Sliding piece
Holder
Rod
Lever
Bearing

B85929
BE81830
B88437
B88249
B83073
B88416
BE80125
B90249

10
11
12
13
15
16
17

D03010
D03011
D03012
D03013
D03015
D03006
D03017

Bushing
Bushing
Nut
Screw
Harness

B74458
B74750
B74748
B74749
