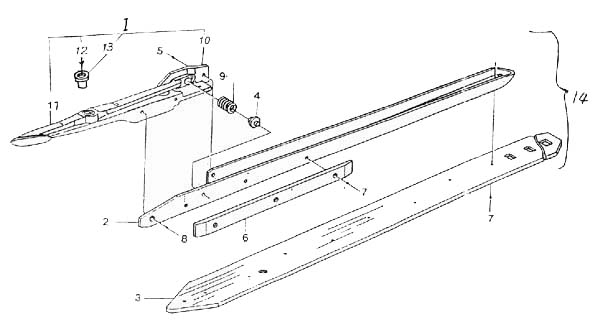

Parts list for Picanol Rapier Loom -
GTM, GTM-A, AS, GTX, Gamma. A-4

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

Ref.

PARTS  NO.

DESCRIPTION

REMARKS

1
2
3
4
5
6
7

A04001
A04002
A04003
A04004
A04005
A04006
A04007

Gripper
Connecting piece
Rapier tape
Holder
Screw
Guide
Screw

A91243
B87630
B87587
B87596
25x5
B87646
2x7

8
9

10
11
12
13
14

A04008
A04009
A04009-1
A04010
A04011
A04012
A04013
A04014

Screw
Spring
Spring
Hook
Thread clip
Screw
Bushing
Gripper assembly

25x6
B87614

B87578
BE81681
25x6
B87609
BE53147
