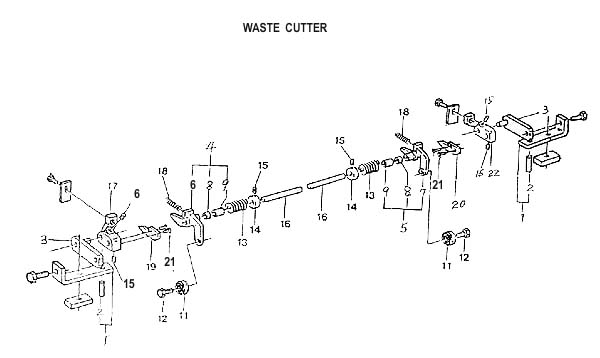

e-3picanol parts


Ref.	PARTS NO.	DESCRIPTION	REMARKS		Ref.	PARTS NO.	DESCRIPTION	REMARKS
1 2 3 4 5 6 7 8 9 11 12	E03001 E03002 E03003 E03004 E03005 E03006 E03007 E03008 E03009 E03011 E03012	Support Pin Rail Lever LHS Lever RHS Lever Lever Bushing Bushing Bearing Screw	BE81340 8x20 B82203 BE80379 BE80378 BE80377 BE80376 B76486 B76487 B72063 B82917		13 14 15 16 17 18 19 20 21 22	E03013 E03014 EOc015 E03016 E03017 E03018 E03019 E03020 E03021 E03022	Spring Stop ring Screw Shaft Support Spring Cutter LHS Cutter RHS Screw Support	B74258 B72518 6x6 B82955 B82912 B24772 B82916 B82915 3x7 B82911

ALL PARTS DETAILS

A. GRIPPER: A-1(LHS Gripper) A-2(RHS Gripper) A-3(LHS Gripper) A-4(RHS Gripper)
B. LENO: B-1(Leno) B-2(GTM Leno) B-3(Leno) B-4(Leno) B-5(Leno)
C. BOBBIN HOLDER: C-1(Bobbin holder) C-2(Guider) C-3(Guider)
D. SELVEDGE AND HARNESS ROD: D-1(Selvedge Motion) D-2(Selvedge Motion)
D-3(Dobhy Lever) D-4(Harness Guide)
E. CUTTER: E-1(Weft Cutter) E-2(Weft Cutter) E-3(Waste Cutter)
F. GRIPPER GUIDE: F-1(Ropier Guide) F-2(Sley Beam)
G. HOUSING: G-1(Housing, Take-up) G-2(Housing, Take-up) G-3(Housing, Leno)
G-4(Housing, Gripper) G-5(Housing, Sley)
H. SAND ROLLER: H-1(Sand Roller)
I. WEFT SELECTOR: I-1(Weft Selector) I-2(Weft Selector)
J. SUCTION DEVICE: J-1(Suction Device)
K. CLUTCH: K-1(Main Clutch) K-2(Pulley)
L. OTHERS: L-1(Others)
