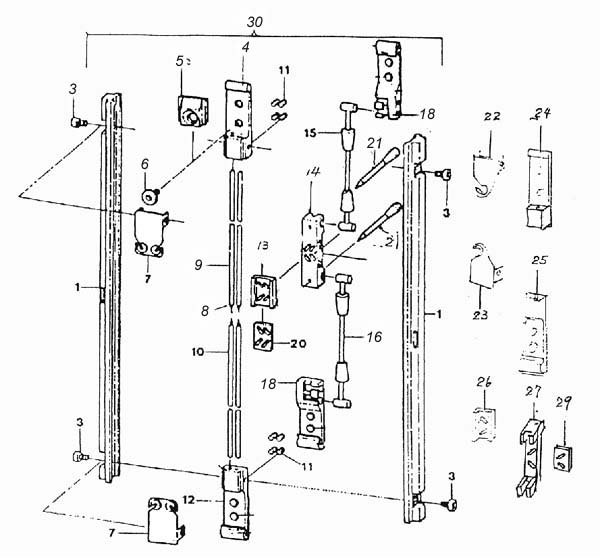

b-4picanol parts


Ref.	PARTS NO.	DESCRIPTION	REMARKS		Ref.	PARTS NO.	DESCRIPTION	REMARKS
1 3 4 5 6 7 8 9 10 11 12 13 14 15	B04001 B04003 B04004 B04005 B04006 B04007 B04008 B04009 B04010 B04011 B04012 B04013 B04014 B04015	Rail Screw Clamp Clamp Screw Thread guide Needle Needle Needle screw Plate Thread Guide Guide piece Strap			16 17 18 20 21 22 23 24 25 26 ZI 29 30 31	B04016 B04017 B04O18 B04020 B04021 B04022 B04023 B04024 B04025 B04026 B04027 B04029 B04030 B04031	Strap Strap Hook Sliding piece Pin Thread guide Thread guide Clamp Plate Thead guide Guide piece Silding piece

ALL PARTS DETAILS

A. GRIPPER: A-1(LHS Gripper) A-2(RHS Gripper) A-3(LHS Gripper) A-4(RHS Gripper)
B. LENO: B-1(Leno) B-2(GTM Leno) B-3(Leno) B-4(Leno) B-5(Leno)
C. BOBBIN HOLDER: C-1(Bobbin holder) C-2(Guider) C-3(Guider)
D. SELVEDGE AND HARNESS ROD: D-1(Selvedge Motion) D-2(Selvedge Motion)
D-3(Dobhy Lever) D-4(Harness Guide)
E. CUTTER: E-1(Weft Cutter) E-2(Weft Cutter) E-3(Waste Cutter)
F. GRIPPER GUIDE: F-1(Ropier Guide) F-2(Sley Beam)
G. HOUSING: G-1(Housing, Take-up) G-2(Housing, Take-up) G-3(Housing, Leno)
G-4(Housing, Gripper) G-5(Housing, Sley)
H. SAND ROLLER: H-1(Sand Roller)
I. WEFT SELECTOR: I-1(Weft Selector) I-2(Weft Selector)
J. SUCTION DEVICE: J-1(Suction Device)
K. CLUTCH: K-1(Main Clutch) K-2(Pulley)
L. OTHERS: L-1(Others)
