c-3picanol parts

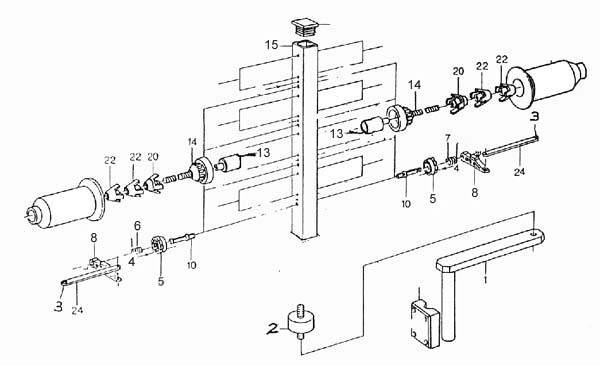

Ref.	PARTS NO.	DESCRIPTION	REMARKS		Ref.	PARTS NO.	DESCRIPTION	REMARKS
1 2 3 4 5 6 7 8	C03001 C03002 C03003 C03004 C03005 C03006 C03007 C03008	Support Shock absorber Pin Control sleeve Spring LHS Spring RHS Lever	B86015 2x8 B86001 B88827 B52198 BE81175		10 13 14 15 20 22 24	C03010 C03013 C03014 C03015 C03020 C03022 C03024	Shaft Bearing Support Clamp Clamp Plate spring	B86004 BE95162 B51845 B51846 BE81176
